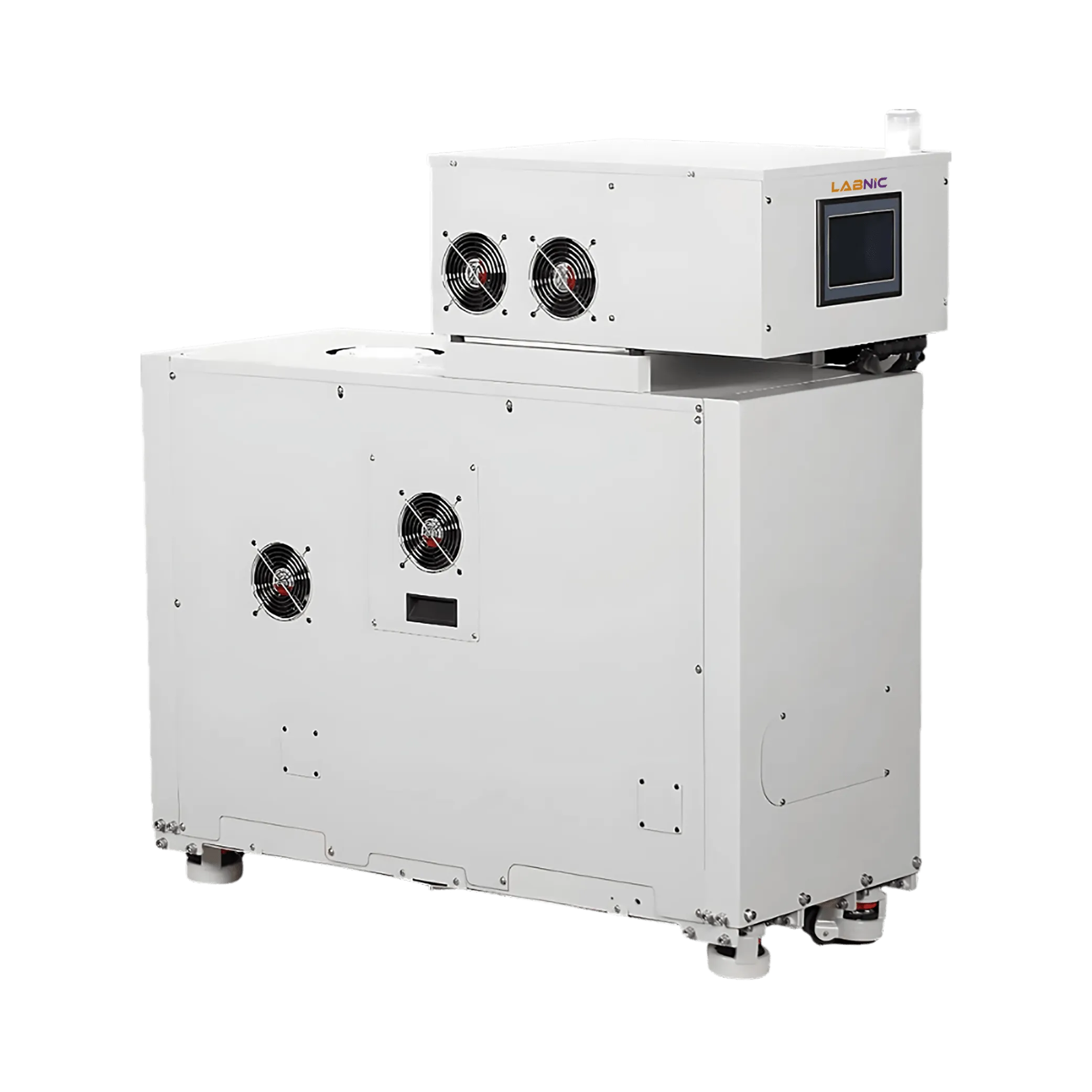

Vacuum System Pump LBN-VS153 offers a reliable pumping speed of 2200 m3/h for consistent performance. Equipped with digital control system for precise operation and real-time monitoring. Integrated with automated cleaning function during shut down to ensure residue removal. Designed with oil-repellent structure for minimal contamination. Our Vacuum System Pump achieves low pressures, making it ideal for demanding applications.
| Pumping Speed | 2200 m3/h |
| Ultimate Pressure | ≤ 1 × 10-1 Pa |
| Outlet Pressure | 1.4 × 10-1 Pa |
| Motor Power | 5.5 + 7.5 kW |
| Ambient Temperature | 5 to 40° C |
| Noise | ≤ 72 or ≤ 75 dB |
| Cooling Water Flow | ≥ 6 L/min |
| Cooling Water Temperature | 5 to 30° C |
| Purging Flow | 12 to 88 L/min |
| Inlet | ISO160 |
| Outlet | KF40 |
| Power Supply | 380 to 400 V |
| Dimension | 160 × 80 × 140 cm |
| Net Weight | 925 kg |
| Gross Weight | 980 kg |
Vacuum System Pump LBN-VS153 is widely used in pharmaceutical processing, semiconductor manufacturing, chemical distillation, industrial drying, food packaging, vacuum metallurgy, aerospace testing, and oil refining.
Vacuum System Pump LBN-VS153 is widely used in pharmaceutical processing, semiconductor manufacturing, chemical distillation, industrial drying, food packaging, vacuum metallurgy, aerospace testing, and oil refining.
Most Frequently Asked Questions
1. What are Vacuum System Pumps used for?
Ans. Vacuum System Pumps are used to generate strong vacuum conditions for handling solvents, vapors, and particulate laden gases in laboratory and industrial applications.
2. How do Vacuum System Pumps ensure high operational efficiency?
Ans. Vacuum System Pumps feature optimized motor designs that deliver high flow rates while reducing power consumption.
3. What type of operation is supported by Vacuum System Pumps?
Ans. Vacuum System Pumps operate with oil-free technology to ensure clean performance and minimal maintenance requirements.
4. How do Vacuum System Pumps support safe and reliable operation?
Ans. Vacuum System Pumps are equipped with fault detection and alert systems to provide early warnings during operation.
5. What performance advantages do Vacuum System Pumps offer?
Ans. Vacuum System Pumps deliver powerful and consistent vacuum generation for efficient laboratory workflows.
6. Where are Vacuum System Pumps commonly used?
Ans. Vacuum System Pumps are commonly used in laboratories, research facilities, and industrial environments requiring reliable vacuum handling.
Vacuum System Pump LBN-VS153 offers a reliable pumping speed of 2200 m3/h for consistent performance. Equipped with digital control system for precise operation and real-time monitoring. Integrated with automated cleaning function during shut down to ensure residue removal. Designed with oil-repellent structure for minimal contamination. Our Vacuum System Pump achieves low pressures, making it ideal for demanding applications.
