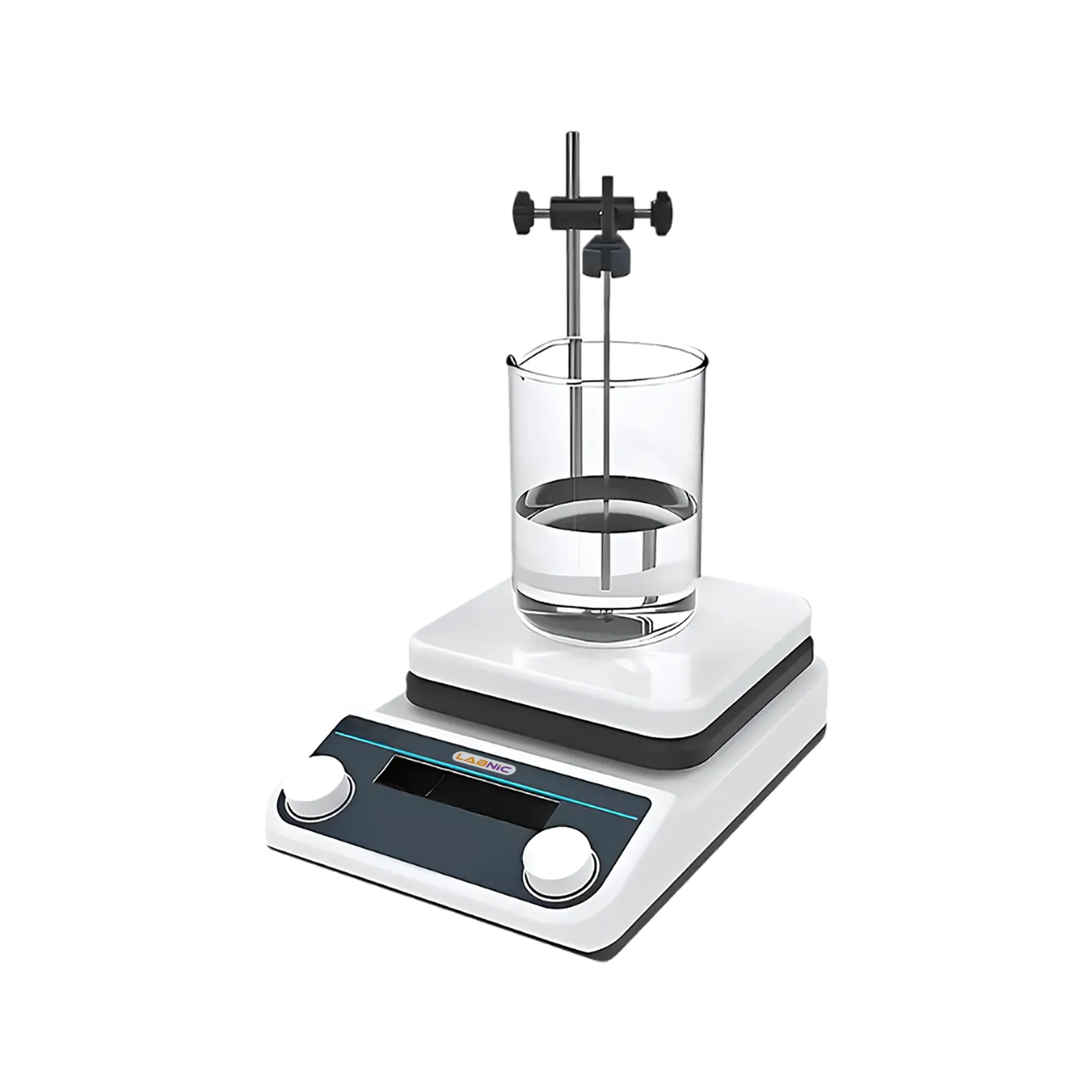

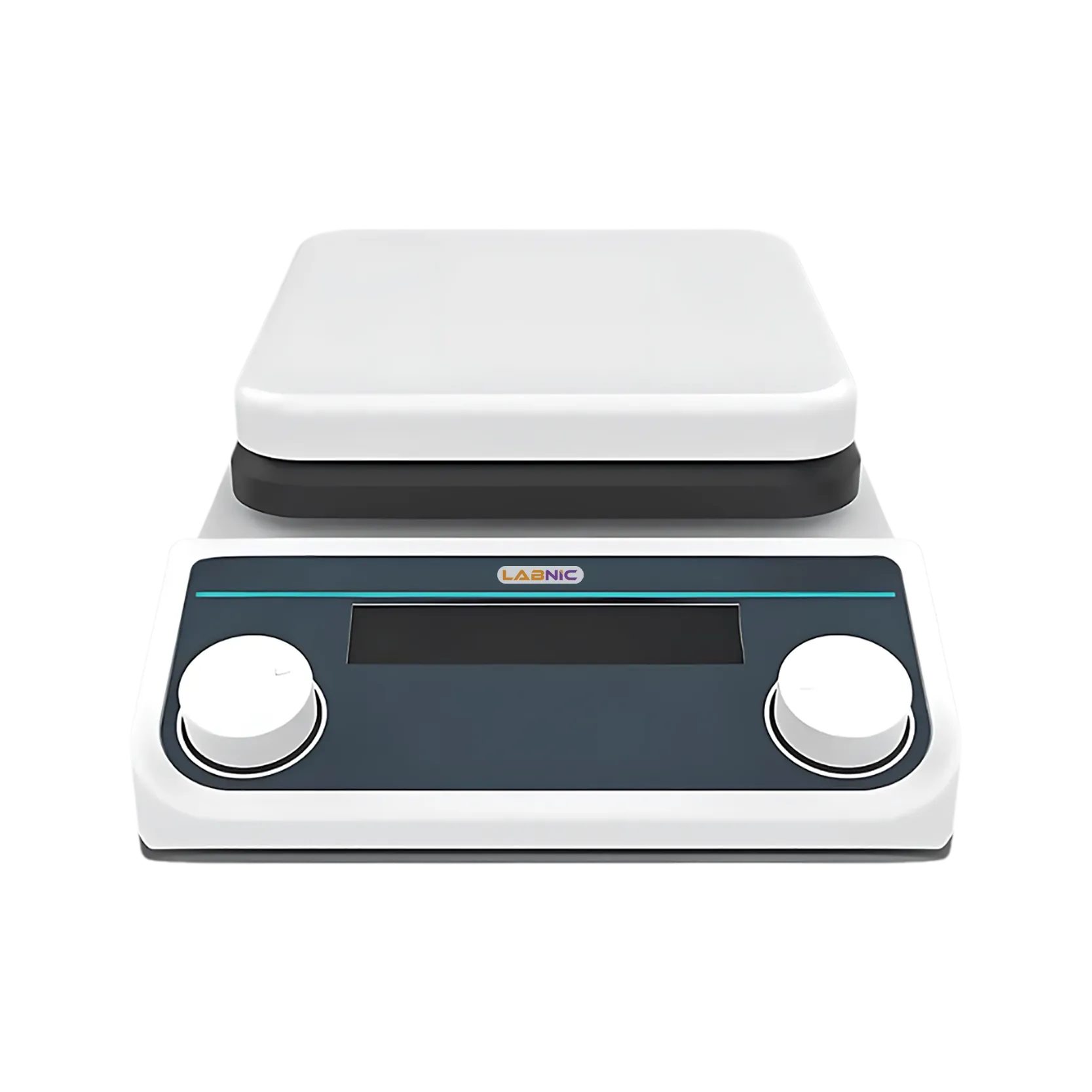

Hot Plate Magnetic Stirrer LBN-HS173 is a high-capacity device designed with a maximum stirring volume of 5L. It features a digital display for real time monitoring of operational parameters. Equipped with button and knob control, it ensures precise adjustments. Integrated with a speed range of 50 to 1500 rpm for efficient mixing. Our Hot Plate Magnetic Stirrer is well suited for applications in chemical, biological and research fields.
| Speed Range | 50 to 1500rpm |
| Maximum Stirring Volume | 5L (H2O) |
| RPM Increment | 10rpm |
| Control | Digital Screen, Rotary Knob, Button |
| Motor | Brushless Motor |
| Stir Bar Size | 40mm Linear Shape |
| Timing Range | 1min to 12h |
| Direction | Anticlockwise |
| Maximum Temperature of Hot Plate | 280℃ |
| Ambient Temperature | 5 to 40℃ |
| Relative Humidity | 80%RH |
| Temperature Display Accuracy/Increment | 0.1℃ / 1℃ |
| Liquid/Plate Temperature Control Accuracy | ±1℃ / ±3℃ |
| Temperature Sensor | PT1000 |
| Power Consumption | 500W |
| Power Supply | AC- 100/220V |
| Hot Plate Dimension | Փ135 mm |
| Dimension | 285×180×90 mm |
Hot Plate Magnetic Stirrer LBN-HS173 is well-suited for precise heating and uniform stirring in chemical, biological, and research laboratories.
Hot Plate Magnetic Stirrer LBN-HS173 is well-suited for precise heating and uniform stirring in chemical, biological, and research laboratories.
Most Frequently Asked Questions
1. What are Hot Plate Magnetic Stirrers used for?
Ans. Hot Plate Magnetic Stirrers are used for simultaneous heating and mixing of liquid samples in laboratory applications.
2. What stirring speed range is supported by Hot Plate Magnetic Stirrers?
Ans. Hot Plate Magnetic Stirrers offer a stirring speed range of 50 to 2000 rpm for efficient and uniform mixing.
3. How do Hot Plate Magnetic Stirrers ensure safe operation?
Ans. Hot Plate Magnetic Stirrers are equipped with over-temperature protection to enhance operational safety.
4. Are heating and stirring settings easy to adjust?
Ans. Hot Plate Magnetic Stirrers allow quick and easy adjustment of heating and stirring parameters.
5. How are operating parameters monitored on Hot Plate Magnetic Stirrers?
Ans. Hot Plate Magnetic Stirrers feature a digital display for monitoring heating, stirring speed, and time settings.
6. Where are Hot Plate Magnetic Stirrers commonly used?
Ans. Hot Plate Magnetic Stirrers are commonly used in research laboratories, clinical labs, and industrial quality analysis.
Hot Plate Magnetic Stirrer LBN-HS173 is a high-capacity device designed with a maximum stirring volume of 5L. It features a digital display for real time monitoring of operational parameters. Equipped with button and knob control, it ensures precise adjustments. Integrated with a speed range of 50 to 1500 rpm for efficient mixing. Our Hot Plate Magnetic Stirrer is well suited for applications in chemical, biological and research fields.
